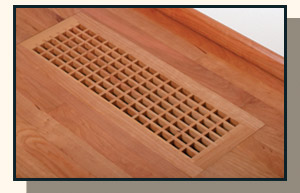

Flush Rim
Flush Rim grilles feature a rectangular grid pattern and are the preferred style for prefinished hardwood floors where an architecturally smooth installation is required. These grilles "drop" in to a pocket routed in the finish flooring. Each vent is 3/4" thick with a standard rim that is 1" wide by 5/16" thick. Custom rim thicknesses are available upon request (20% upcharge).

Order grilles by duct opening.

Standard Sizes
Duct Size
Free Area (sq. in.) Overall Dimensions
6 x 24
8 x 24

6 x 30
8 x 30
10 x 30

65.5
87.3

81.9
109.2
136.5

8 x 26
10 x 26

8 x 32
10 x 32
12 x 32
