The leader in wood vents since 1983. Only a speacial blend of time honored techniques and modern technology yield the quality and unrivaled beauty of ClassicAire Vents.
ClassicAire wood vents are guaranteed to last a lifetime. Properly finished and installed, they will stand up to the rigors of everyday foot traffic while offering the beauty you expect from REAL wood. It is our mission to provide you with a beautiful and well-crafted product for your complete satusfaction.
Proudly made in the USA!

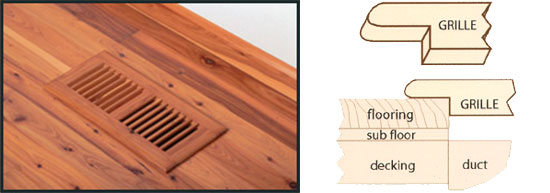

Self Rim
Self Rim grilles provide two way diffusion and are the preferred style for most flooring surfaces. The grille simply "drops" in to a hole cut in the finish flooring. This versatile style can be used with new or existing hardwood floors, laminate, carpet, tile, or vinyl, with the rim of the grille neatly concealing the cut edge of the finish flooring. Each grille is 3/4" thick with a bull nosed rim that is 1" wide by 3/8" thick. Order grilles by duct opening.
| Standard Sizes, Duct Size | Free Area (sq. in.) | Overall Dimensions |
| 2-1/4" x 10" | 6.7 | 4-1/4" x 12" |
| 2-1/4" x 12" | 8.18 | 4-1/4" x 14" |
| 2-1/4" x 14" | 9.67 | 4-1/4" x 16" |
| 4" x 10" | 13.95 | 6" x 12" |
| 4" x 12" | 17.05 | 6" x 14" |
| 4" x 14" | 20.15 | 6" x 16" |
| 6" x 10" | 22.68 | 8" x 12" |
| 6" x 12" | 27.72 | 8" x 14" |
| 6" x 14" | 32.76 | 8" x 16" |

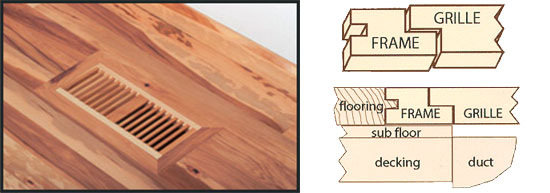

Flush with Frame
Flush with Frame grilles provide two way diffusion and are the preferred style for sand and finish hardwood floors where an architecturally smooth look is desired. Each frame is grooved on the outside to accommodate most 3/4" tongue and groove flooring. All grilles are 3/4" thick, with a 1-3/8" wide frame which adds 2-1/4" to the overall dimension of the grille. Custom thicknesses are available upon request (20% upcharge). Order grilles by duct opening.
| Standard Sizes, Duct Size | Free Area (sq. in.) | Overall Dimensions |
| 2-1/4" x 10" | 6.7 | 5" x 12-3/4" |
| 2-1/4" x 12" | 8.18 | 5" x 14-3/4" |
| 2-1/4" x 14" | 9.67 | 5" x 16-3/4" |
| 4" x 10" | 13.95 | 6-1/4" x 12-3/4" |
| 4" x 12" | 17.05 | 6-1/4" x 14-3/4" |
| 4" x 14" | 20.15 | 6-1/4" x 16-3/4" |
| 6" x 10" | 22.68 | 8-1/4" x 12-3/4" |
| 6" x 12" | 27.72 | 8-1/4" x 14-3/4" |
| 6" x 14" | 32.76 | 8-1/4" x 16-3/4" |
Self Rim
Self Rim grilles provide two way diffusion and are the preferred style for most flooring surfaces. The grille simply "drops" in to a hole cut in the finish flooring. This versatile style can be used with new or existing hardwood floors, laminate, carpet, tile, or vinyl, with the rim of the grille neatly concealing the cut edge of the finish flooring. Each grille is 3/4" thick with a bull nosed rim that is 1" wide by 3/8" thick. Order grilles by duct opening.
| Standard Sizes, Duct Size | Free Area (sq. in.) | Overall Dimensions |
| 2-1/4" x 10" | 6.7 | 4-1/4" x 12" |
| 2-1/4" x 12" | 8.18 | 4-1/4" x 14" |
| 2-1/4" x 14" | 9.67 | 4-1/4" x 16" |
| 4" x 10" | 13.95 | 6" x 12" |
| 4" x 12" | 17.05 | 6" x 14" |
| 4" x 14" | 20.15 | 6" x 16" |
| 6" x 10" | 22.68 | 8" x 12" |
| 6" x 12" | 27.72 | 8" x 14" |
| 6" x 14" | 32.76 | 8" x 16" |

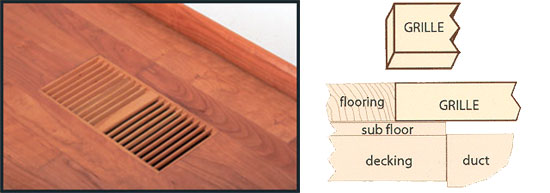

Flush Mount
Flush Mount grilles provide two way diffusion and are used with hardwood floors as independent inserts (without frame) that rest on top of the sub floor and sit flush with the finished floor. These units are primarily used for new hardwood floor installation but may be used with existing hardwood floors. Other applications include wall or ceiling installations where a flush surface is required. Each grille is 3/4" thick with a rail that is 3/8" wide with straight edges and no undercut. Order grilles by duct opening.
| Standard Sizes, Duct Size | Free Area (sq. in.) | Overall Dimensions |
| 2-1/4" x 10" | 10.80 | 4" x 12" |
| 2-1/4" x 12" | 12.90 | 4" x 14" |
| 2-1/4" x 14" | 15.10 | 4" x 16" |
| 4" x 10" | 19.20 | 6" x 12" |
| 4" x 12" | 23.00 | 6" x 14" |
| 4" x 14" | 26.90 | 6" x 16" |
| 6" x 10" | 28.80 | 8" x 12" |
| 6" x 12" | 34.50 | 8" x 14" |
| 6" x 14" | 40.30 | 8" x 16" |

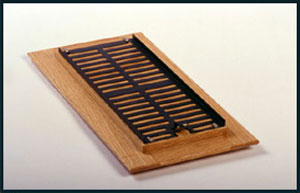

Damper
ClassicAire again leads the industry by providing an innovative patented slim-line damper. Each damper is fully adjustable and can be easily attached to any standard size grille.
